DD 1.25 Pallet Inverter

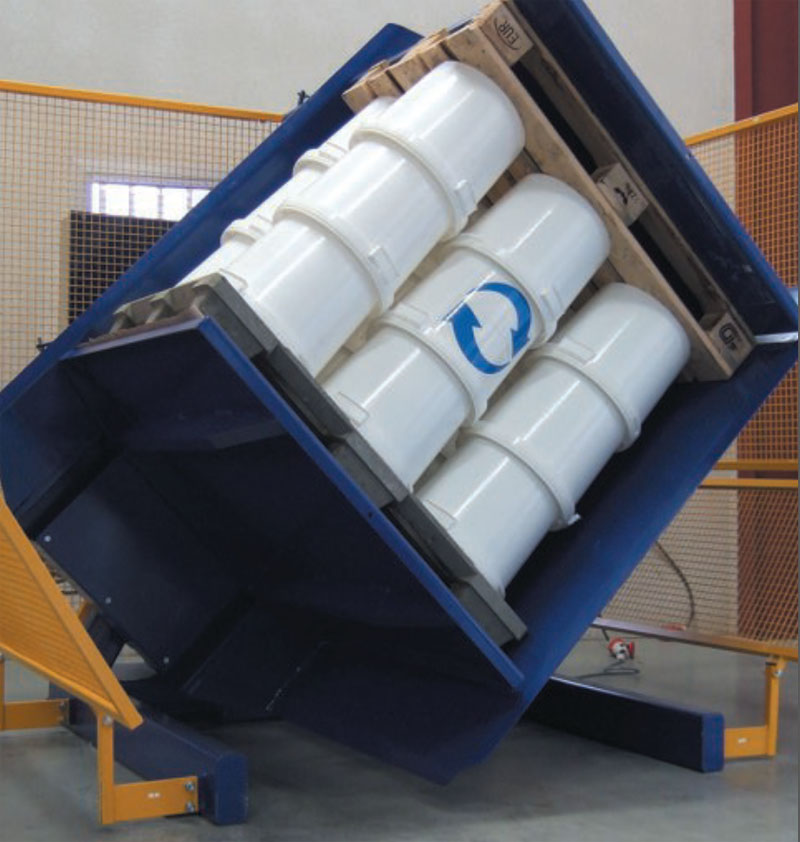

The DD1.25 Inverter is a lightweight, easily transportable model which loads either by forklift truck or at ground level by pallet truck. The dual loading tables open to just 4" above ground level making it accessible by a ramp.
With a loading capacity of 2750lbs it is best suited to lighter load lower volume applications. Having said that, it will transfer a load in under 2 minutes and we have many of these systems out in the field handling 200 to 300 loads a week.

The DD1.25 Inverter is capable of handling a total variety of product loads from candy to coffee, beer to babyfood. It can invert boxes, bags glass, plastics or paper with equal ease.
Not only is the DD1.25 lighter, it also works in a smaller operating area so when space is at a premium it comes into its own. Its many users appreciate the enclosed styling which makes it very easy to maintain and clean.

• Easy to move and store. The lightweight DD 1.25 inverter weighs in at only 3300 pounds.
• Low clamping tables. The tables can open to just 4 inches from floor level to allow for ease of handling.
• Small size. The compact dimensions are perfect for use in small areas.
• Easy to use controls. The controls are push button and can be ordered with either full or semi automatic options.

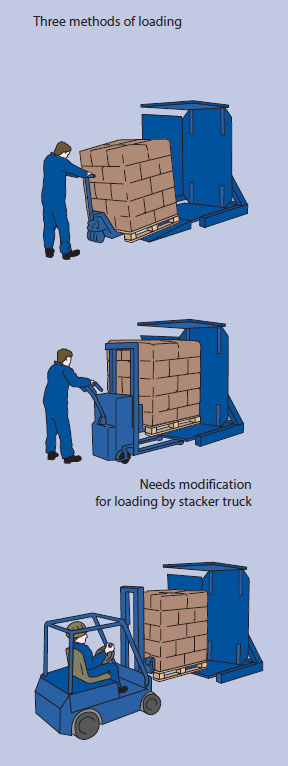

• Able to be loaded easily using a forklift, pallet truck or stacker.
• Available options including an assortment of guards.
• Perfect for small areas and lightweight use.

More about the DD 1.25 Pallet Inverter

The DD1.25 Inverter is a 180° model with a "usable" opening between the tables of 75" maximum and 36" minimum. It will handle pallet dimensions up to 48" square. With this specification, we find we can meet a very wide range of customer requirements.

The dual clamping system on the DD1.25 means that the weight is evenly distributed around the pivot point making it equally capable of handling short heavy loads as well as tall lightweight ones.
As with most of our pallet inverters, this model is supplied with guarding attached to the feet of the machine. Forklift tunnels at the rear are designed to make it easy to relocate if necessary.
Many operators will find a permanent site for the Dd1.25 and in these circumstances we commonly supply floor fixed guards and photobeam protection. We are also supplying increasing numbers of machines with semi-automatic controls.
With this system the inverter will run through its complete clamp-turn-unclamp sequence as long as the operator holds his finger on the "run" button. It makes the system easy to use but from a safety aspect the user always has complete control. For less heavy loads and in restricted working space, the DD1.25 Inverter is the perfect answer.

DD 1.25 SPECIFICATIONS
Usable jaw opening		maximum 1.90m
		minimum 0.90m
Load tables		1.16m wide x 1.18m deep
Can be supplied with 1.50m long loading ramp for floor level access.
Loading capacity 1250 kgs.
Power supply 3ph / 400v/ 15 amp
Motor size 2.2kW
Weight 1500 kgs
Weight of guards 175 kgs
Controls: Extended individual push button controls with semi or fully auto- sequenced systems available as an option.

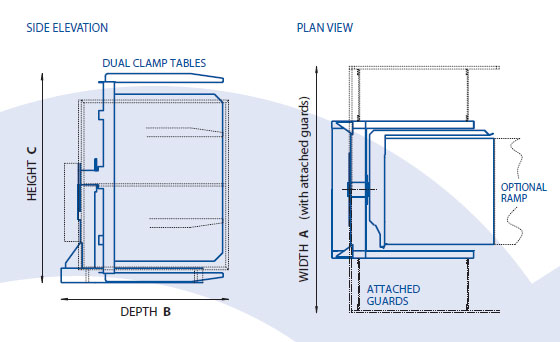

Operating space: 2.70m wide x 1.78m deep x 2.30m high inc. attached guards
Depth increases to 3.00m when fitted with floor-fixed guards and multi photo-beams.
Standard shipping dimensions: 2.70m wide x 1.78m deep x 2.00m high with guards fitted.
